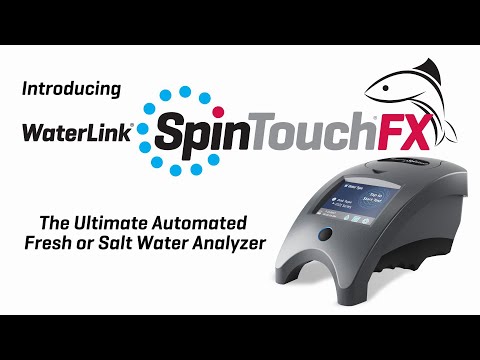

WaterLink® Spin Touch® FX

Order Code: 3589

The Ultimate Fresh & Salt Water Analyzer for Fish Farming applications

The innovative WaterLink^® Spin Touch^® FX photometer does all your freshwater, saltwater and brackish water testing for you. Each sealed SpinDisk^® reagent cartridge contains the precise amount of reagent needed to run a complete series of tests. Fresh and salt water disks available. Just fill one unique SpinDisk^® reagent cartridge with sample water and all your vital tests are done automatically—in just 2 minutes! It’s the most advanced system for wet chemistry methods ever produced.

Now analysts can achieve test results without time consuming test and clean-up procedures. This ground-breaking analysis system is so simple anyone can use it! No vials to fill, no prep time, no guessing!

See other WaterLink^® Spin Touch^® models at: www.waterlinkspintouch.com

Features

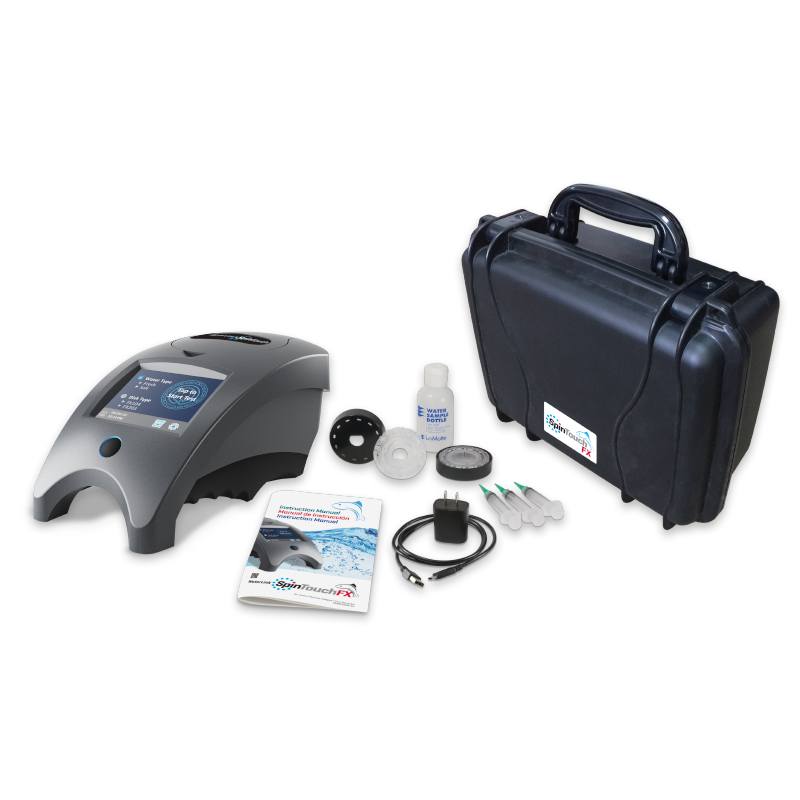

The WaterLink^® Spin Touch^® FX Includes: Photometer, Instruction Manual, Quick-Start Instructions, 3 Syringes, Meter Check Disk, Disk Cover, Sample Bottle, USB Cable with AC Adapter, Carrying Case (Disks sold separately).

Available Test Factors with Fresh Water SpinDisk^® Reagent Cartridges (Code 4353-H):

Alkalinity
Ammonia
Hardness
Nitrate
Nitrite
pH
Phosphate

Available Test Factors with Salt Water SpinDisk^® Reagent Cartridges (Code 4354-H):

Alkalinity
Ammonia
Calcium
Magnesium
Nitrate
Nitrite
pH
Phosphate

Up to 8 Tests in 2 Minutes!

Super Fast & Simple
Auto-Record Keeping
Rugged and Portable

Fast Results

Reduces User-Error
Pre-Measured Reagents
Exact Reaction Time and Auto-Blanking
Meter Calibration Check System
6-Wavelength Photometer
2 Minutes for up to 8 Complete Tests Using One Disk
Fill Disk and Insert > Tap “Start Test” > Read Results

Data Logging

Stores Test Dates, Times, Results, and Location
Download via USB to PC
Stand-Alone or Cloud-Connected
Touchscreen Operation
Connect to WaterLink^® Solutions via Bluetooth^®
Rugged and Portable
Innovative Water-Resistant Housing
Internal, Rechargeable Batteries

Specifications

WaterLink^® Spin Touch^® FX Meter Specifications

Instrument Type	Centrifugal Fluidics Photometer
Wavelengths (interference filters)	390 nm, 428 nm, 470 nm, 525 nm, 568 nm, 635 nm
Display	Color Capacitive Touchscreen, 3.5 in, 320 x 240 pixel resolution
Wavelength Accuracy	±2 nm
Wavelength Bandwidth	10 typical
Photometric Range	-2 to 2 AU
Photometric Precision	±0.01 AU at 1.0 AU
Photometric Accuracy	±0.01 AU at 1.0 AU
Sample Chamber	Accepts prefilled disk
Light Source	6 LEDS
Detectors	6 silicon photodiodes
Pre-Programmed Tests	Yes, with automatic wavelength selection
Languages	English, French, Spanish, German, Dutch, Swedish, Portuguese, Italian, Chinese, Turkish
Temperature	Operation: 0-50 °C; storage – 40-60 °C
Operation Humidity Range	0- 90 % RH, non-condensing
Communication	USB-C, Bluetooth low energy technology (BLE)
Calibration	Factory set, field calibration via internet connection
Firmware	Internet updateable (New Test, New Test Calibrations, etc.)
Software	Android & iOS Apps, WaterLink® Solutions, WaterLink® Connect
Power Requirements	USB wall adapter, USB computer connection or internal lithium ion rechargeable battery
Battery Type	Lithium ion
Minimum Capacity	12 V/2.6 AH
Charge Life	Approximately 150 tests
Battery Life	Approximately 500 charges
Full Charge	10-12 hours
Water Resistance	Rubber over-molded base, rubber USB Port Plug, gasketed display and hinge.
Electrical Rating	Rated voltage (5V), Rated power of input current (1.6 A) at USB C
Auto Off	Yes, default 15 (only with battery power)
Power Save	Yes, default OFF
Data Logger	250 test results stored for download to PC or transfer by Bluetooth
Dimensions	21.6 X 12.4 X 10.4 cm (L X W X H); 8.5 X 4.9 X 4.2 in
Weight	0.79 Kg, 1.74 lb
Certification	CE

SpinDisk^® Reagent Cartridge Single Use Freshwater FX104 (Code 4353-H) Series Specifications

Test Factor	Display Abbreviation	Range	Accuracy	Method Detection Limit
Alkalinity	ALK/D ALK	0 – 250 ppm/14.0 dKH	± 15%	15 ppm/0.8 dKH
Ammonia	AMMO	0.0 – 3.0 ppm	< 2.0 ppm: ± 0.2 ppm; > 2.0 ppm: ± 0.4 ppm	0.2 ppm
Hardness	G HARD/D HARD	0 – 500 ppm/ 28.0 dGH	± 15%	20 ppm/1.1 dGH
Nitrate	NITRATE	0 – 300 ppm	± 30% up to 125 ppm	5 ppm
Nitrite	NITRITE	0.0 – 2.0 ppm	± 0.2 ppm	0.1 ppm
pH	pH	4.5 – 10.0	± 0.2	NA
Phosphate	PHOS	0.0 – 2.0 ppm	± 0.2 ppm	0.2 ppm

SpinDisk^® Reagent Cartridge Single Use Saltwater FX203 (Code 4354-H) Series Specifications

Test Factor	Display Abbreviation	Range	Accuracy	Method Detection Limit
Alkalinity	ALK/ALK D	0 – 300 ppm/17.0 dKH	± 15%	15 ppm/0.8 dKH
Ammonia	AMMO	0.0 – 3.0 ppm	< 1.0 ppm: ± 0.2 ppm; > 1.0 ppm: ± 0.4 ppm	0.2 ppm
Calcium	Ca	200 – 800 ppm	± 15%	NA
Magnesium*	Mg	500 – 2200 ppm	± 15%	NA
Nitrate	NITRATE	0 – 60 ppm	± 25%	5 ppm
Nitrite	NITRITE	0.0 – 2.0 ppm	± 0.2 ppm	0.1 ppm
pH	pH	6.5 – 10.0	± 0.2	NA
Phosphate	PHOS	0.0 – 2.0 ppm	± 0.2 ppm	0.2 ppm

Brackish Tablet Package (Code 3865-PKG)

For testing brackish water samples (10-20ppt salinity) use the Brackish Tablet Package with the Saltwater FX203 SpinDisk^®.

*Brackish samples will not report Magnesium

Accessories

SpinDisk^® Reagent Cartridges for Fresh and Salt Water Testing

Item Description	# of Disks per Box	Order Code
FX Fresh Water Series SpinDisks^®	50	4353-H
FX Salt Water Series SpinDisks^®	50	4354-H

SpinDisk^® Patent No. 8,734,734; FCl Patent No. 8,987,000; TCl Patent No. 8,993,337; FCl EU Patent No. EP2784503 A1

Brackish Tablet Package

For testing brackish water samples (10-20ppt salinity) use the Brackish Tablet Package with the Saltwater FX203 SpinDisk^®.

Item Description	Order Code
Brackish Tablet Package	3865-PKG

*Brackish samples will not report Magnesium

Water Analysis Software

Item Description	Order Code
WaterLink^® Solutions PRO Water Analysis Software for LaMotte Instruments	Free Version
WaterLink^® Solutions PRO Water Analysis Software for LaMotte Instruments (Includes monitoring dashboard)	Monthly Subscription

WaterLink^® Spin Touch^® FX Accessories and Replacement Parts

Item Description	Order Code
Water Sample Bottle (60 mL)	0688
Plastic Beaker, 50 mL	0944
Syringe with tips (3)	1189-3
Syringe tips (3)	1189-TIP
Cleaning Tissues	0669
Meter Check Disk	1705
Universal Disk Cover	1719
USB Cable	1712
AC Adapter (North America)	1713
Cloth Wipe	3580-WIPE
Mobile Bluetooth Printer	5-0067

Downloads

ColorQ® 2x Drinking Water Kit

Order Code: 2101

ColorQ® 2x High Range Chlorine Test Kit

Order Code: 2100

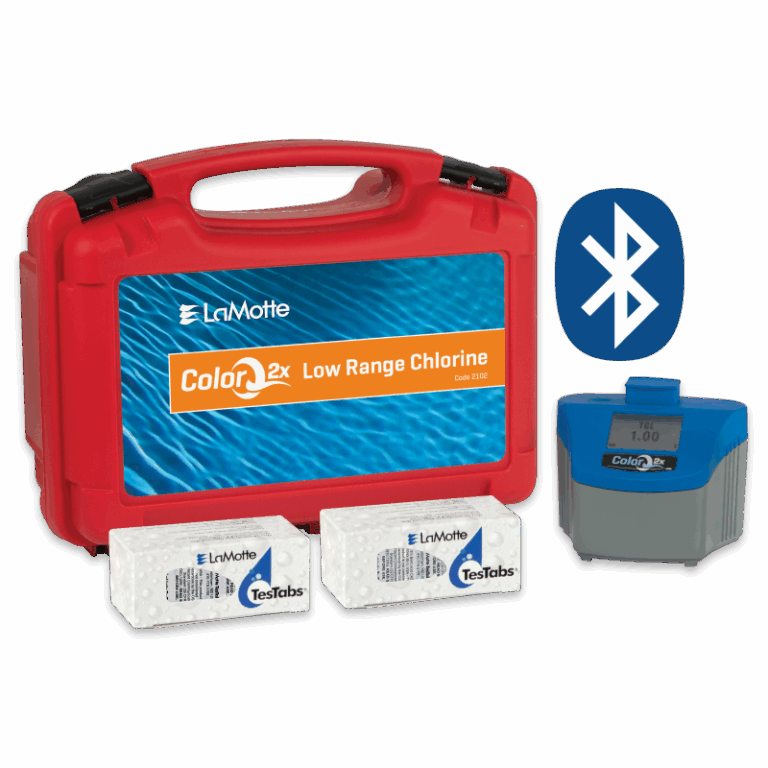

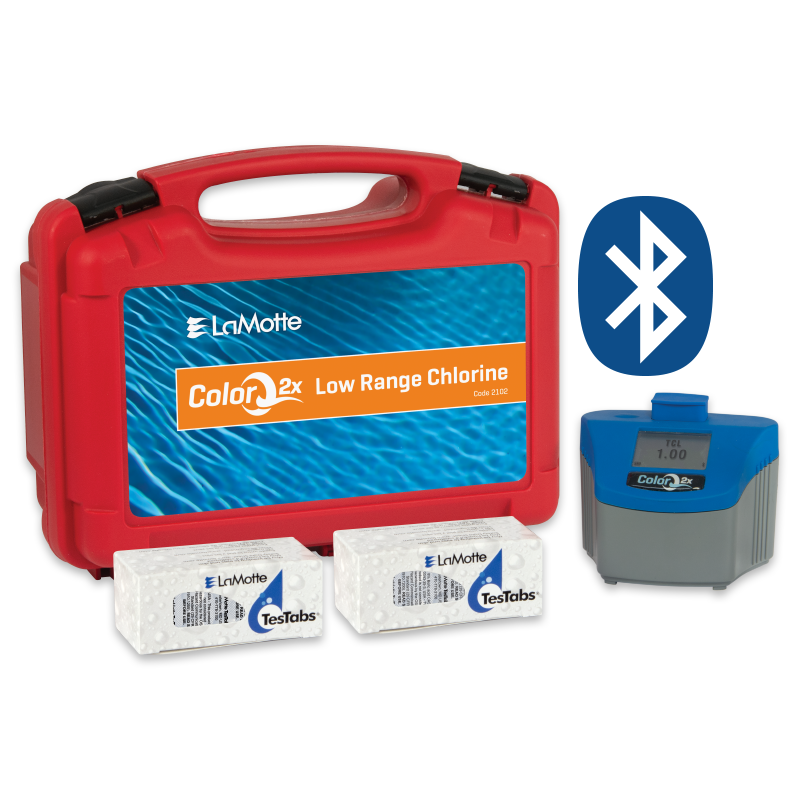

ColorQ® 2x Low Range Chlorine Test Kit
